| DELTRONIC DVC-110 VIDEO COMPARATOR |
The DVC-110 manual video measurement system was designed to provide the best features at a reasonable
cost. This system performs as well as those costing thousands of dollars more. This entry-level unit
provides fast accurate optical inspections.
|
| Standard Features |
 |
· DVC-110 2" X 2" Standard System
· Granite Base (2" X 10" X 12 1/2")
· 6" X 6" Precision Measuring Stage with 2" X 2"
Travel
· Vertical Column (13" Overall) 4" Z Axis Focus
Travel
· High-Intensity Collimated Contour Fiber-Optic
· 100-Watt Master Fiber-Optic Illuminations
System with Keypad Controller
· Manual Zoom Video Lens 35X to 235X
· VC-1000 Digital Cross Hair Generator
· Solid-State Color Camera
· 13" Color Monitor
· .00005"/.001mm Resolution Scales for X & Y
|
| Optional Features |
· Fiber Optic Illumination (Shown at Right)
· .75X to 2X Auxiliary Lens
|

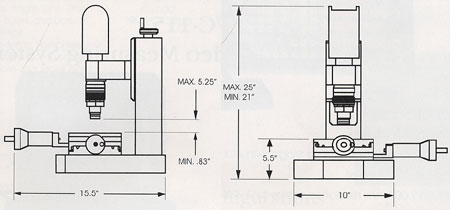

| Deltronic DVC-110 Design Schematic |
|
