| Force Measurement Systems |
SHIMPO Instruments offers a complete line of force and torque gauges, test stands
and accessories for various quality control, production, research and development
and incoming inspection applications. Featuring a wide-range of digital and mechanical
force and torque gauges and motorized and manual test stands, we can tailor a solution
to virtually any force or torque application. With force capacities ranging from 8 ounces
to 500 pounds and torque from 50 inch ounces to 100 inch pounds, we offer the right combinations. |
| |

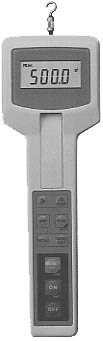

| DFS Series |
Microprocessor-controlled, the DFS series represents a unique apporach to force testing. Designed
to be handheld or stand mounted, the DFS features many advanced functions typically included on
gauges costing twice as much. Intelligent and versatile, these high performance gauges are easily
user configured for sampling and display update rate, units of measure, baud rate, data output stream,
memory type and high and low set points. Large memory capacity (100 samples) and on board statistical
processing allows the DFS series to operate with or without computer control.
|
 |
|
| |
| FGV-X & FGE-X Series |
The Shimpo workhorse gauge just got better! Faster, smarter, and easier to use! The DART 1000 series,
with its fast 1000 Hz update rate, is able to capture the highest force peaks. With variable display
update rate and the same superior accuracy as the DFS series, these new gauges feature unique 180 degree
flip displays, permitting the user to read the display right-side up. Additional enhancements are:
dual direction keypad, variable baud rate for SPC applications, selectable force direction indication,
and selectable power on/off settings.
|
 |
|
| |
| FGV-H & FGE-H Series |
The microprocessor-controlled, digital FGV-H and FGE-H series offers the same user-friendly features of
the popular FGV and FGE series, but in an extremely heavy-duty case, allowing the gauges to handle larger
capacities from 0 to 500 pounds. Two "knurled" steel handles are provided for hand operation and a
hanger is included which enables each gauge to be used as a scale.
|
 |
|
| |

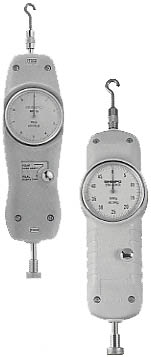

| MF & EM Series |
Incredibly durable and user-friendly, the economical MF and EM mechanical gauges are excellent for
repetitive testing in assembly line or quality control lab applications. The peak mode features an
easy pushbutton reset; this is especially helpful for doing repetitive testing in an assmbly line or
quality control lab. The real time mode allows you to see force changes as they occur. |
 |
|
|
