| DIGITAL FORCE GAUGES: DFS Series |
Microprocessor-controlled, the DFS series represents a unique apporach to force testing. Designed
to be handheld or stand mounted, the DFS features many advanced functions typically included on
gauges costing twice as much. Intelligent and versatile, these high performance gauges are easily
user configured for sampling and display update rate, units of measure, baud rate, data output stream,
memory type and high and low set points. Large memory capacity (100 samples) and on board statistical
processing allows the DFS series to operate with or without computer control.
|
| Standard Features |
 |
· Rapid sampling rates as high as 1000 Hz
· 100 Sample Memory Capacity
· On Board Statistical Processor
· Hi and Low Set Points
· RS232C, Digimatic and Analog Output
· Selectable Display and Sampling Rates
· Overload Output Signal
· Overload Capacity: 200% F.S.
· Heavy-duty Load Sensor
· Temperature Compensated Load Sensing
· Field Calibration Through Keypad
· Remote Tare
· Hold Function
· +/- 0.2% F.S. Accuracy
· Peak or Present Reading Displayed
· Measures Force in lbs. kgs. or N
· Rugged Die-cast Aluminum Housing
· Reverse Display Models Available
· Measures Both Push and Pull Forces
· Auto Power Shut-off
· Low Battery Indicator
· One Year Warranty
|

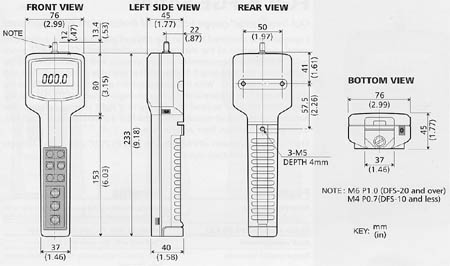

| Shimpo Digital Force Gauges: DFS Series Design Schematic |
|
|
|
