DIGITAL FORCE GAUGES: FGE-H/FGV-H Series |
The microprocessor-controlled, digital FGV-H and FGE-H series offers the same user-friendly features of
the popular FGV and FGE series, but in an extremely heavy-duty case, allowing the gauges to handle larger
capacities from 0 to 500 pounds. Two "knurled" steel handles are provided for hand operation and a
hanger is included which enables each gauge to be used as a scale.
|
Standard Features |
 |
· Reversible Display
· Outstanding Accuracy (+/- 0.2% F.S.)
· Peak Measurement
· Rechargeable Batteries
· Field Calibration Through Keypad
· Overload Capacity: 200% F.S.
· Overload Output Signal (FGV-H Models)
· RS232C and Analog Outputs (FGV-H Models)
· Variable Units of Measure (lbs, kgs, or N)
· Heavy-duty Load Sensor
· Two Heavy-duty "knurled" Steel Handles
· Removable Hanger
· Measures Both Compression and Tension Forces
· Auto Power Shut-off
· Low Battery Indicator
· Ergonomically Designed
· One Year Warranty
|

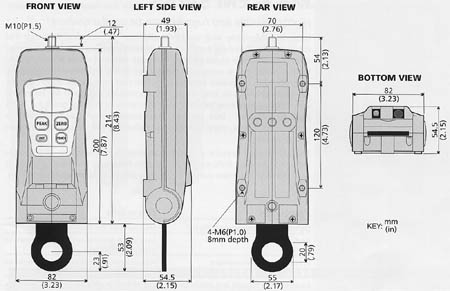

Shimpo FGV-H & FGE-H Design Schematic |
|
|
|
