| DIGITAL FORCE GAUGES: FGE-X/FGV-X DART 1000Hz Series |
The Shimpo workhorse gauge just got better! Faster, smarter, and easier to use! The DART 1000 series,
with its fast 1000 Hz update rate, is able to capture the highest force peaks. With variable display
update rate and the same superior accuracy as the DFS series, these new gauges feature unique 180 degree
flip displays, permitting the user to read the display right-side up. Additional enhancements are:
dual direction keypad, variable baud rate for SPC applications, selectable force direction indication,
and selectable power on/off settings.
|
| Standard Features |
 |
· 1000 Hz Update Rate
· Highly Accurate (+/- 0.2% F.S.)
· Peak Measurement
· Reversible Keypad
· Variable Display Rate
· Overload Capacity: 200% F.S.
· Heavy-duty Load Sensor
· Variable Baud Rate, RS-232C, and
Analog Outputs (FGV-X Models)
· Variable Units of Measure (Oz., lbs., Kg, N)
· Rugged Die-Cast Aluminum Construction
· Measures and Records Compression and
Tension Tests
· Dual Power Capable
· Selectable, Automatic On/Off Ability
· Low Battery Indicator
· One Year Warranty
|

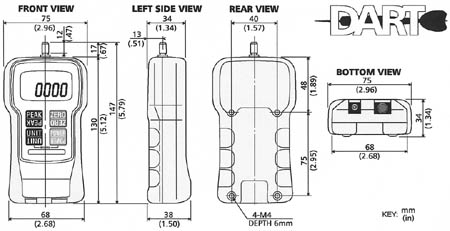

| Shimpo FGE-X & FGV-X Design Schematic |
|
|
|
